Settings

Configure your Pine Labs Online merchant account, manage API credentials, register webhooks, customise hosted checkout branding, enable product modules, and view active payment methods — all from a single Settings dashboard.

The Settings section helps merchants, developers, operations teams, and support teams securely manage account-level configurations for both dashboard usage and API integrations.

What You Can Configure in Settings

The Settings dashboard gives you centralized control over:

• API authentication credentials for backend integrations
• Webhook URLs and payment event notifications
• Hosted checkout branding and styling
• Product module enablement such as Payouts and Subscriptions
• Payment method visibility and activation status

UAT and Production environments have separate configurations, credentials, and webhook URLs.

Accessing the Settings Dashboard

To open Settings:

1. Log in to your Pine Labs Online merchant dashboard
2. Navigate to the left sidebar
3. Click Settings

The Settings dashboard contains the following tabs:

Credentials

The Credentials tab provides secure API authentication keys required for Pine Labs Online integrations.

Available Credentials

The Client Secret is masked by default for security purposes.

Available Actions

• Copy Client ID or Client Secret
• Reveal hidden Client Secret using the eye icon
• Regenerate Client Secret if compromised

Security Best Practices

:::warning Never expose Client Secret in frontend applications or public repositories. :::

• Store credentials using environment variables or a secrets manager
• Rotate secrets immediately if leaked
• Never commit secrets to Git repositories
• Use backend-only authentication flows

Generate Access Token

const response = await fetch('https://api.pluralonline.com/api/auth/v1/token', {
  method: 'POST',
  headers: { 'Content-Type': 'application/json' },
  body: JSON.stringify({
    client_id: process.env.PINE_LABS_CLIENT_ID,
    client_secret: process.env.PINE_LABS_CLIENT_SECRET,
    grant_type: 'client_credentials',
  }),
});

const { access_token } = await response.json();

Environment-Specific Credentials

Always use the correct credentials for the selected environment.

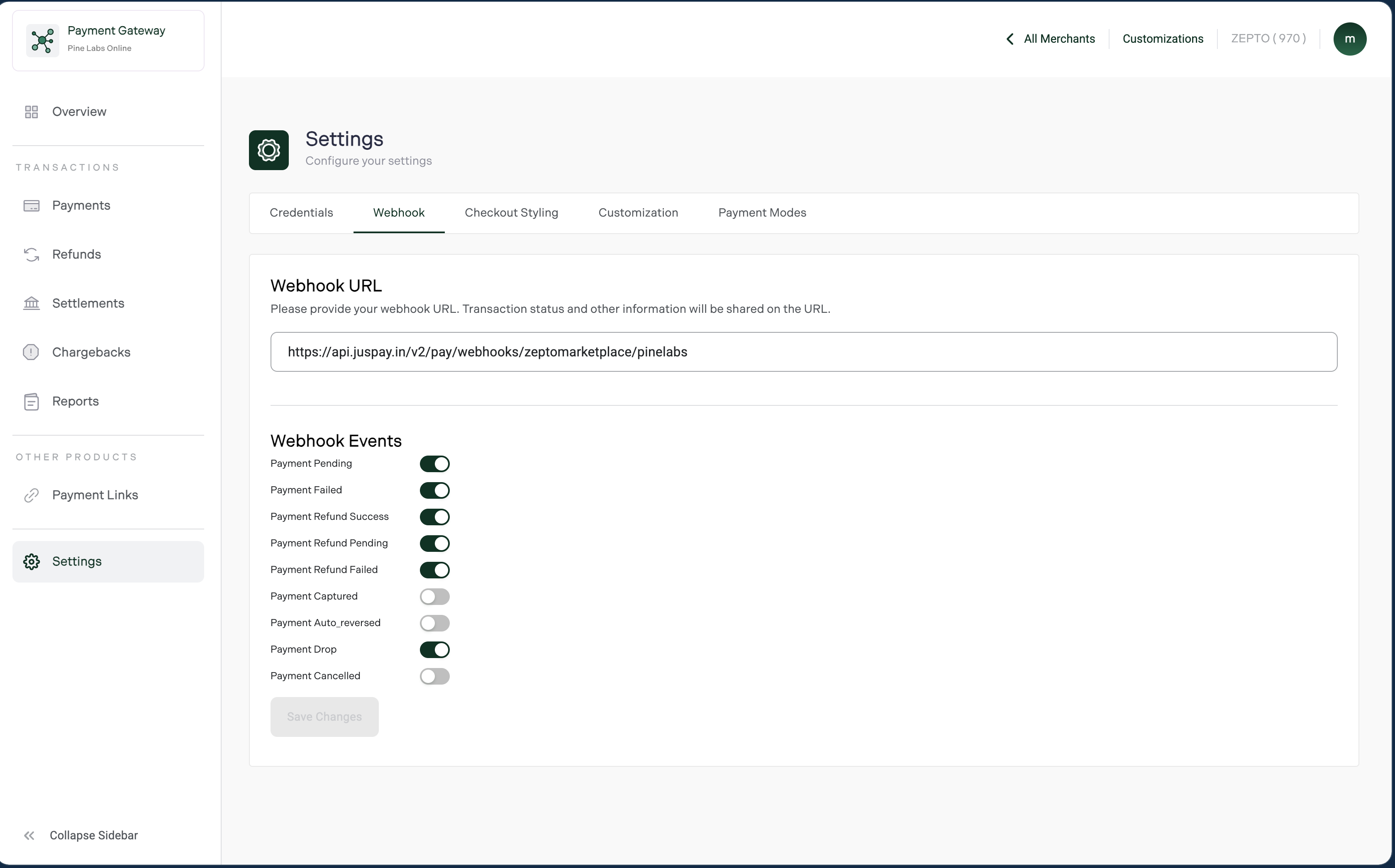

Webhook Configuration

The Webhook tab allows you to receive real-time payment event notifications directly on your server.

Configure Webhook URL

Add your secure HTTPS endpoint where Pine Labs should send payment updates.

https://api.juspay.in/v2/pay/webhooks/zeptomarketplace/pinelabs

Supported Webhook Events

Webhook Setup Workflow

1. Enter your Webhook URL
2. Enable required webhook events
3. Click Save Changes
4. Verify delivery using test events

:::tip Keep all refund-related webhook events enabled for accurate reconciliation. :::

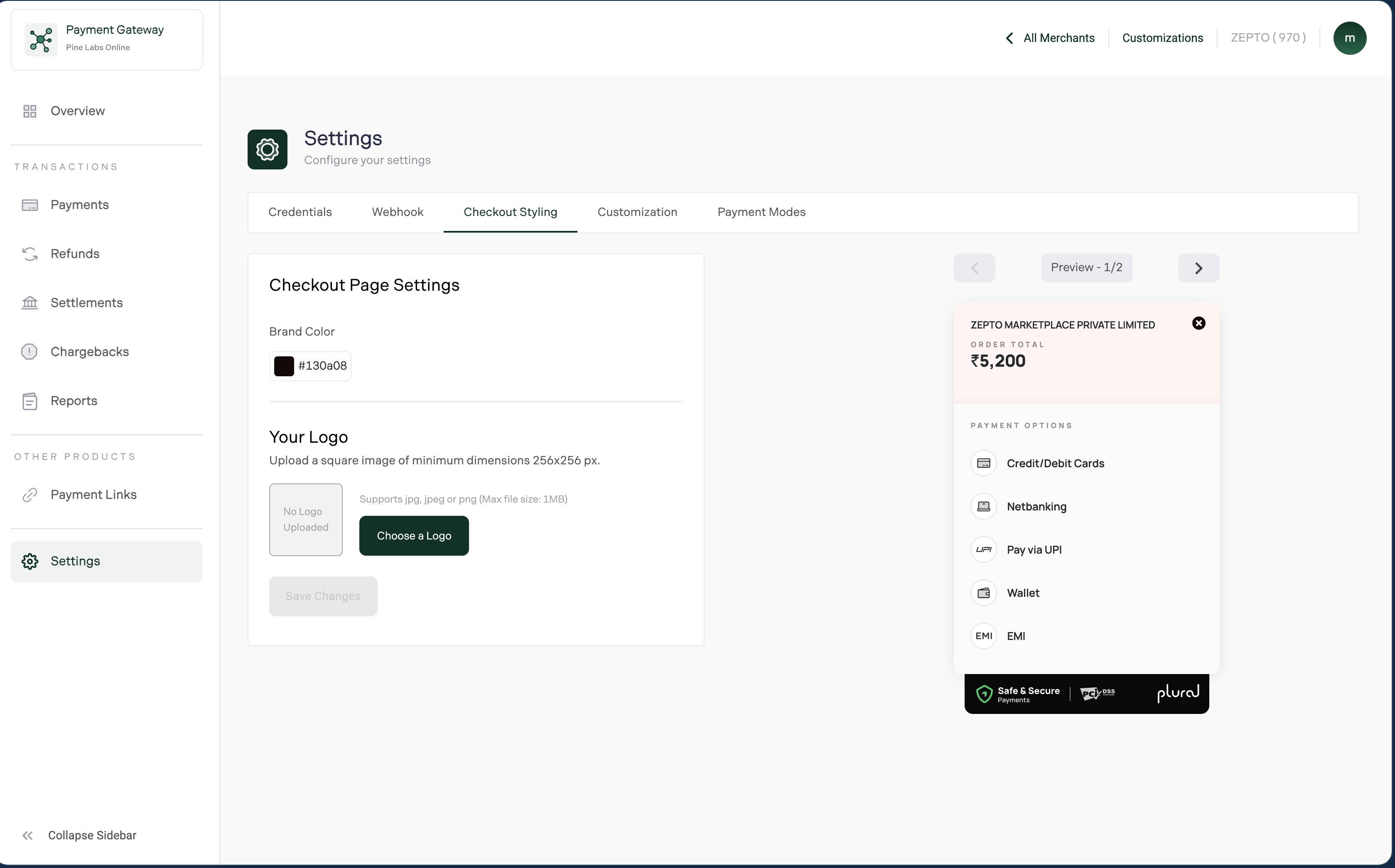

Checkout Styling

The Checkout Styling tab allows you to customise the appearance of the Pine Labs hosted checkout page.

Branding Options

Live Checkout Preview

The dashboard includes a live preview panel that updates instantly when:

• Brand colors are changed
• Logos are uploaded
• Checkout states are previewed

This helps ensure branding consistency before publishing changes.

Checkout Branding Best Practices

• Use the same logo across your website and checkout
• Match checkout colors with your brand identity
• Maintain consistent business naming
• Keep branding clean to improve customer trust and reduce payment drop-offs

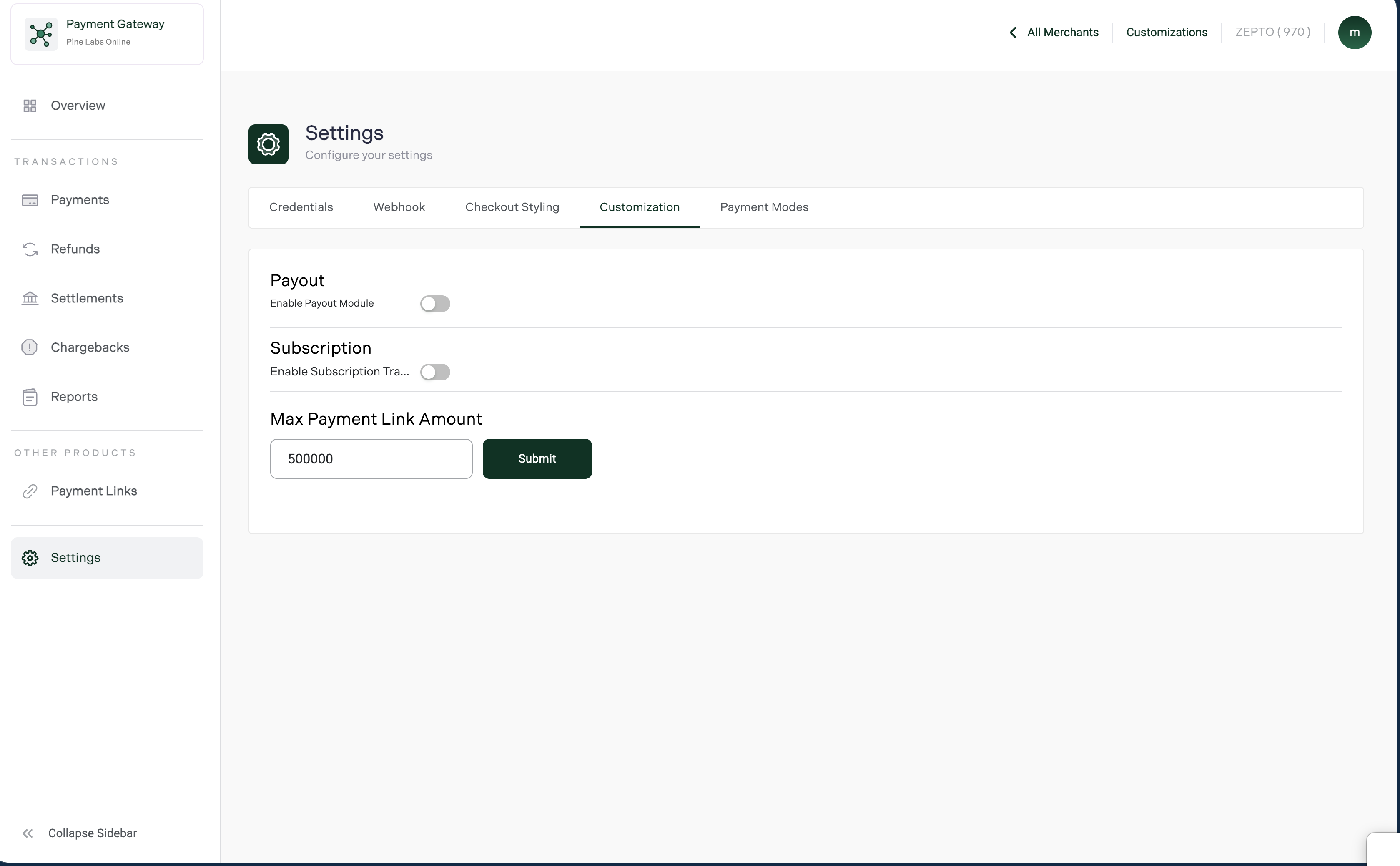

Customization

The Customization tab helps merchants enable optional modules and configure account-level limits.

Available Settings

Default maximum payment link amount: 500000 INR (minor unit).

Configuration Workflow

1. Enable required modules
2. Configure payment link limit
3. Click Submit

:::note Some modules may require commercial activation from Pine Labs before becoming available. :::

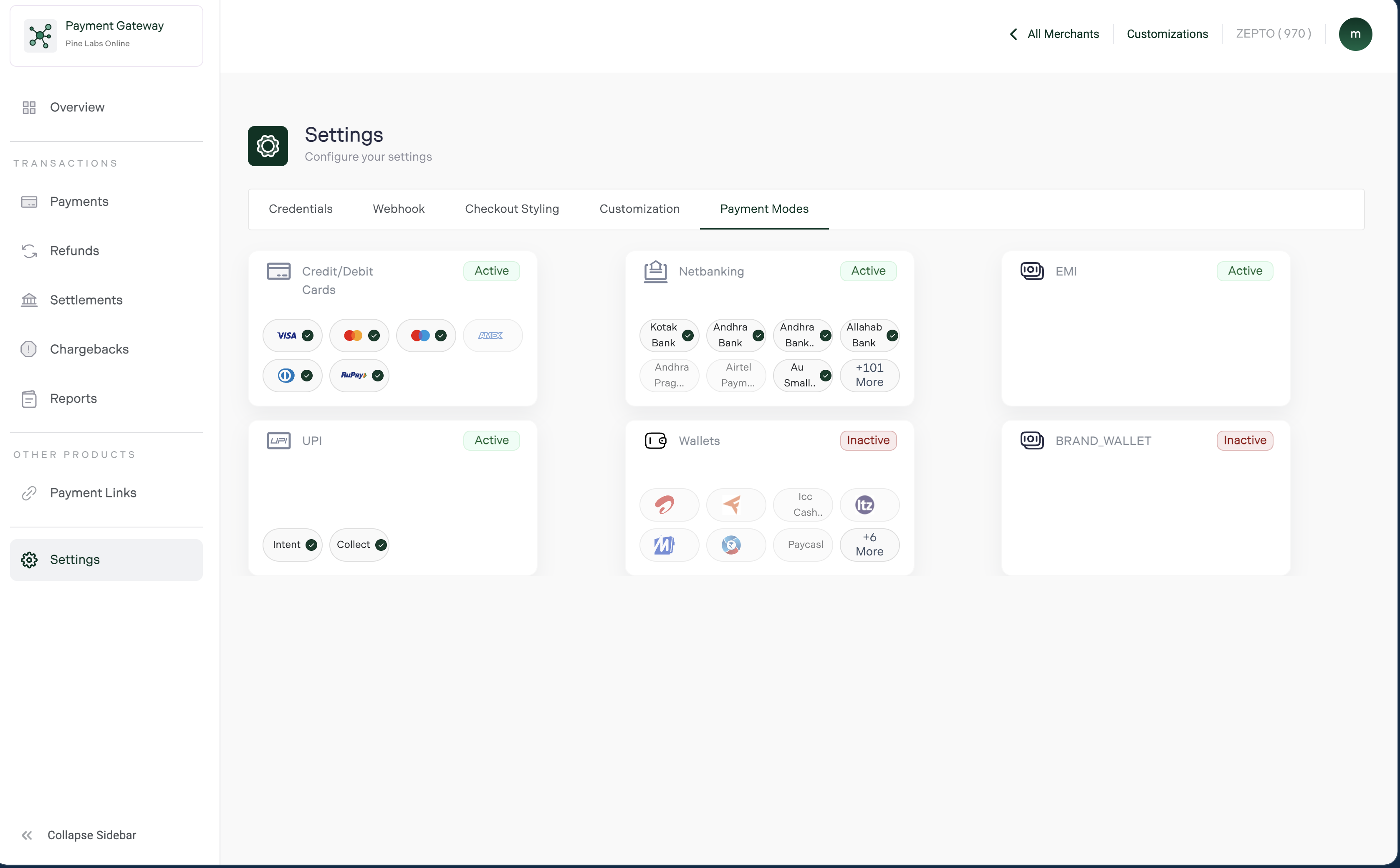

Payment Modes

The Payment Modes tab displays all payment methods enabled for your merchant account.

Supported Payment Methods

Understanding Payment Status

• Active indicates the payment method is enabled
• Inactive indicates the method is not enabled for your account
• Green ticks indicate supported issuers or networks
• Overflow indicators such as +101 More show additional supported banks or wallets

Enabling Additional Payment Methods

The Payment Modes section is read-only for merchants.

To enable:

• Additional banks
• Wallets
• EMI providers
• New payment methods

Contact your Pine Labs account manager.

Common Settings Tasks

FAQ

How do I get Pine Labs API credentials?

Navigate to Settings → Credentials to access your Client ID and Client Secret.

What happens when I regenerate my Client Secret?

The previous secret becomes invalid immediately. Update your backend configuration before using the new secret in production.

Can I configure multiple webhook URLs?

The dashboard supports one webhook URL per environment. For multi-destination delivery, use your own webhook proxy service.

Can I use the same API credentials for UAT and Production?

No. UAT and Production environments use separate credentials and base URLs.

Why is my checkout logo not appearing?

Ensure:

• File size is below 1 MB
• File format is JPG, JPEG, or PNG
• The logo appears correctly in the live preview
• Browser cache is refreshed after saving changes
